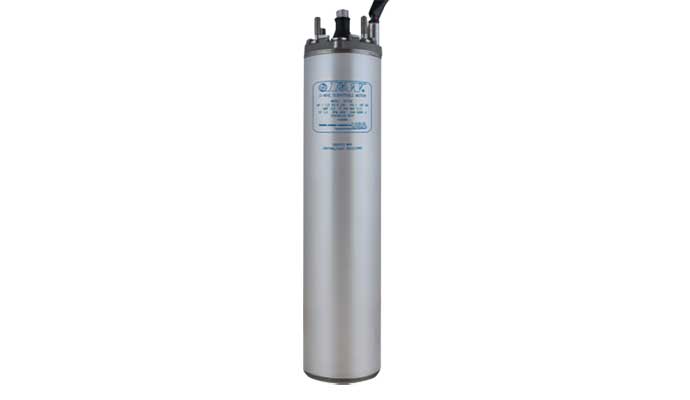

4" Submersible Motors
Product Specifications
| Hertz | 60 Hz |
| Volts | 115 or 230 V |
| Phase | 1 Ph |
Features and Benefits
Flint & Walling 4" Submersible Motors provide quality in the details:
- Nitrile rubber shaft seal . . . three-part design protects motor from contamination
- Stainless steel shaft . . . features polished bearing journals for extended bearing life
- Copper-wound stator for superior performance
- Stainless steel carbon graphite Kingsbury thrust bearing . . . provides self-aligning axial support up to 700 lbs. for reliable operation
- Stainless steel shell and stator ends. . . hermetically sealed for maximum corrosion resistance
- Carbon graphite radial bearings . . . precision ground for high load capability and long life
Each motor undergoes comprehensive testing:
- Stator hi-pot, resistance, surge
- Weld quality
- High pressure motor integrity verification
- Final motor hi-pot, no load and maximum thrust load
Technical Data
Model Comparison Charts

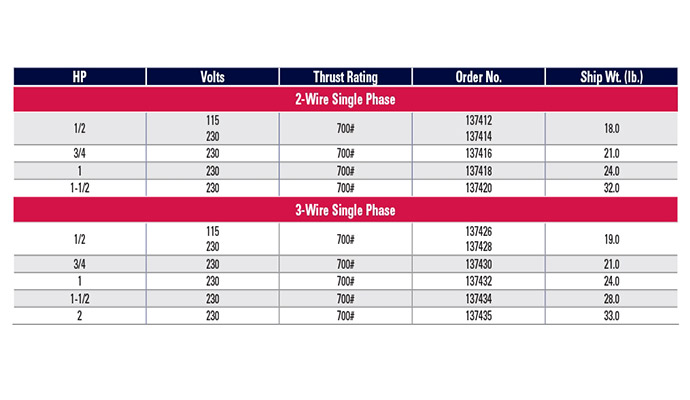

Motor Specification Chart, 4 In Submersible Motor, 60hz

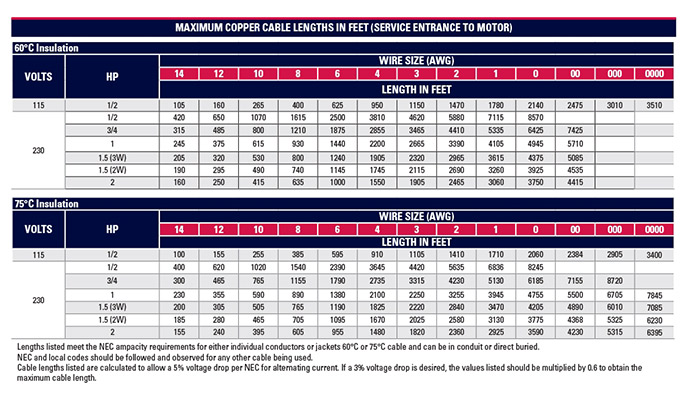

Maximum Copper Cable Lengths Chart, 4 In Submersible Motor, 60hz

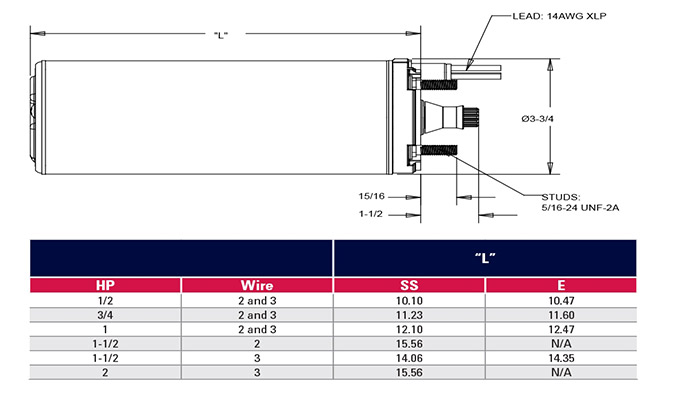

Motor Dimensions, 4 In Submersible Motor, 60hz

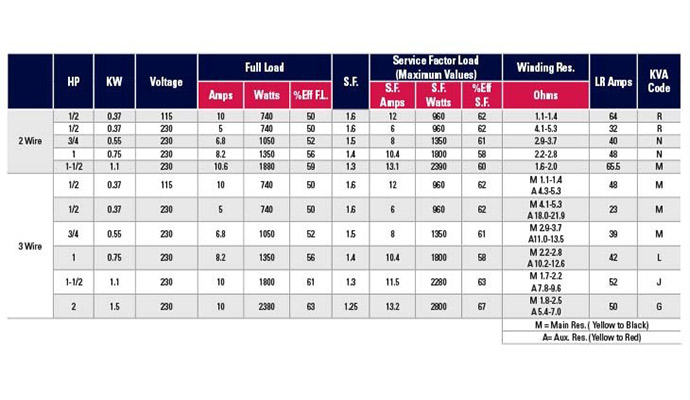

Motor Table, 4 In Submersible Motor, 60hz

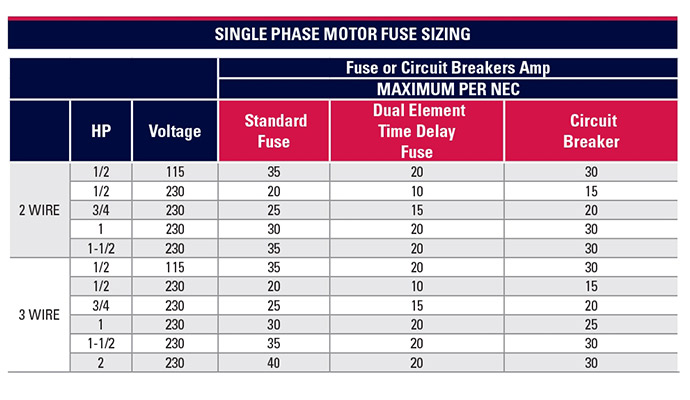

Single Phase Motor Fuse Sizing Chart, 4 In Submersible Motor, 60hz
Sales and Marketing
FW1637, 024601 Motor Application Guide: 60 Hz
FW1680, FW Motor Protection Catalog
